Hydraulic cylinder design and manufacturing

MADENTEK has a wide knowledge and experience in designing, prototyping and manufacturing highly-engineered hydraulic cylinders for mining and energy industries with rigorous application requirements and challenging operating environments.

cylinder design

Hydraulic cylinder design

Precision is essential in hydraulic cylinder design and manufacturing. Whether you need one custom-made, purpose-built cylinder or a thousand, MADENTEK manufactures to your exact specifications from prototype to production and commissioning. Our hydraulic cylinder CAD team have capability to design all hydraulic cylinder types from single- and double-acting telescopic to the full range of rod-style cylinders.

Call us now for your hydraulic cylinder requirements >>
Hydraulic cylinders

Manufacturing quality

MADENTEK hydraulic cylinders boast unmatched quality and features that can withstand the most challenging industrial applications and environments. We manufacture hydraulic cylinders in our own highly equipped manufacturing facility with our own staff. During the manufacturing process, we adhere to industry guidelines and quality control measures. Our cylinder components are manufactured in-house to our rigorous standards.

Check out our custom design cylinder samples >>
Hydraulic cylinder engineering

Hydraulic cylinder engineering

Design and engineering expertise of MADENTEK is enlarged by the capacity of industries we serve. From mining and energy to drilling , defense and construction , our hydraulic cylinder solutions are used in every industry powered by hydraulics.

Working across a wide range of industries improves our design innovation and product development process as we apply insights learned from one industry to better serve customers in others.


MADENTEK hydraulic cylinders usage areas

  • Mining facilities (open-pit mining, underground mining)
  • Industrial equipment & machinery (conveyors, forklifts, heavy industrial systems)
  • Oil and natural gas facilities
  • Drilling Rigs (Oil, diamond core, geotechnical, bored pile etc)
  • Hydraulic platforms and lifting systems
  • Construction industry (Excavators, skid steer loaders, track loaders)
  • Automative and spare parts industries
  • Dam gates (for opening and closing of the gates)
  • Defense industry (armored personnel carriers, aircraft material handlers)
  • Health and medical industry

Hydraulic cylinder types

  • Ø40 - Ø1500 rod diameter range options
  • 1,000 mm-12,000 mm stroke length range options
  • Single and double acting cylinders
  • Welded hydraulic cylinders
  • Single and multi-stage telescopic cylinders
  • Tie-rod and ram styles
  • Flange mounts, side-mounted and centerline lug mounts
  • Custom design hydraulic cylinder manufacturing
  • Hydraulic cylinder parts

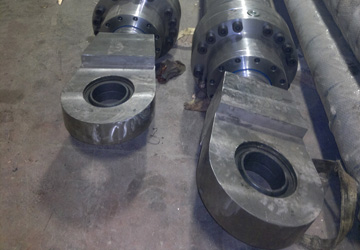

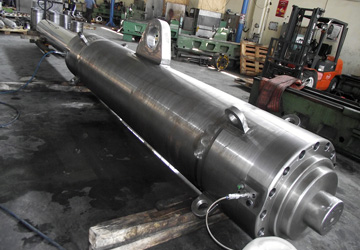

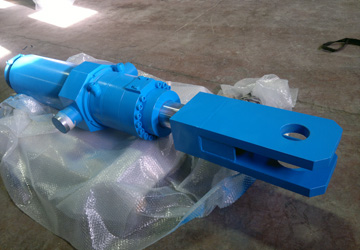

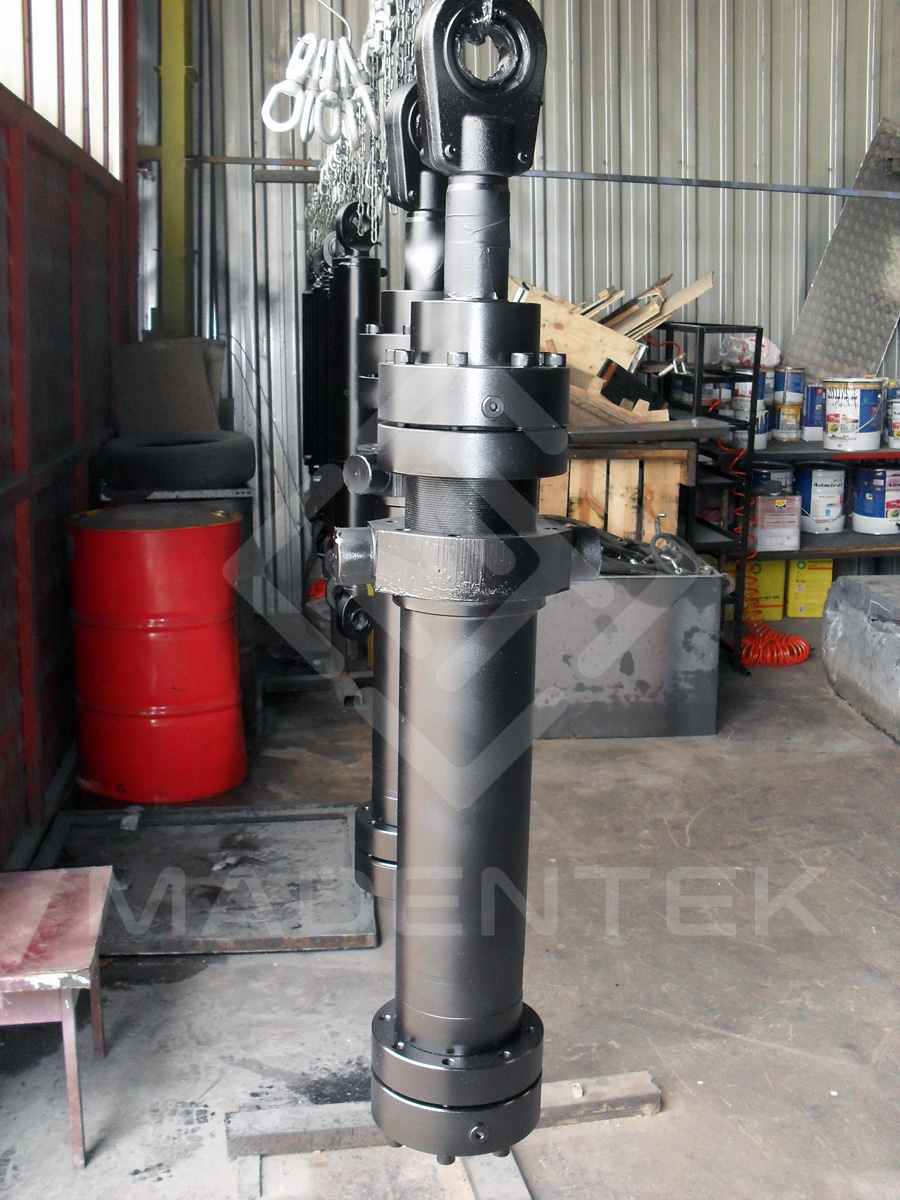

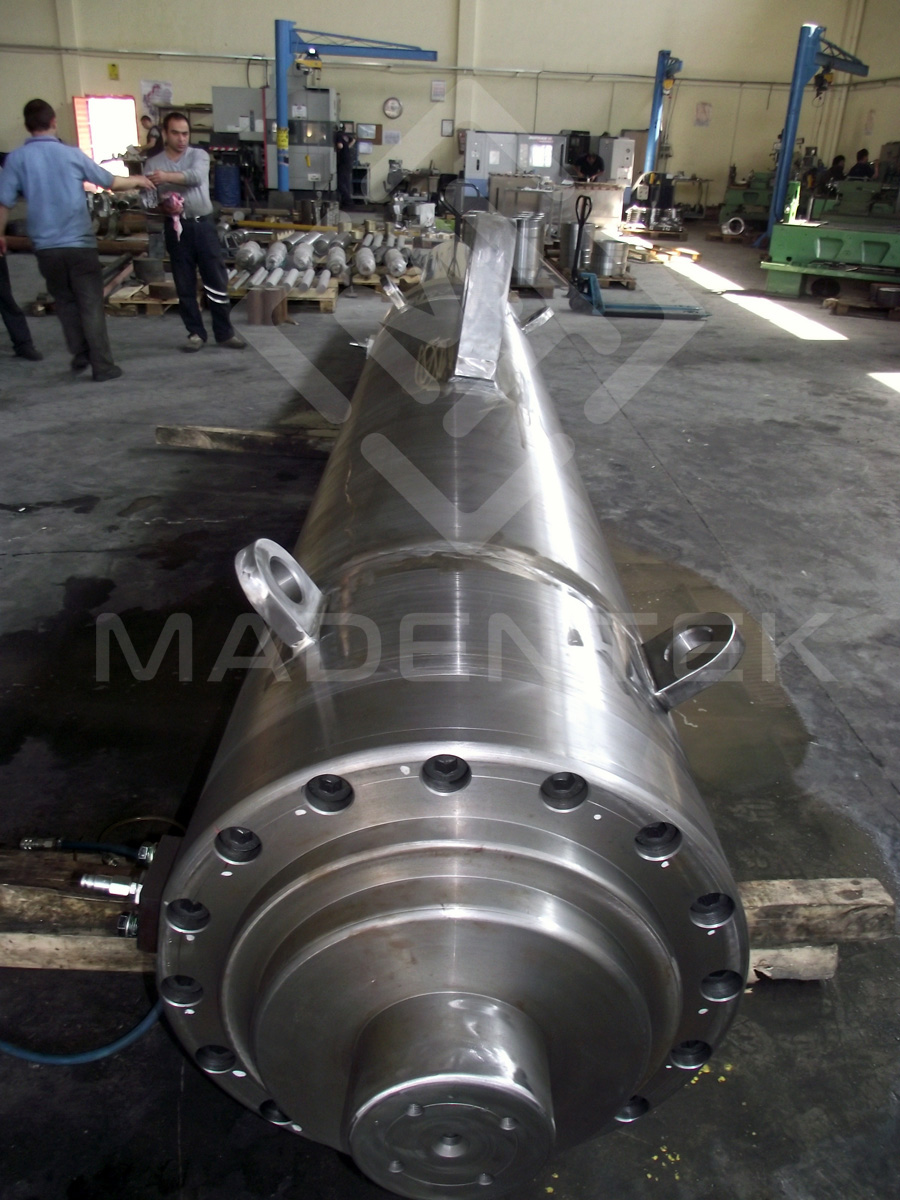

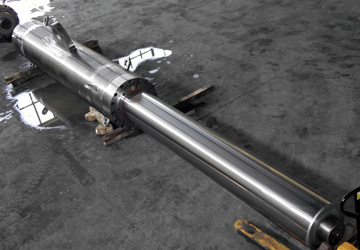

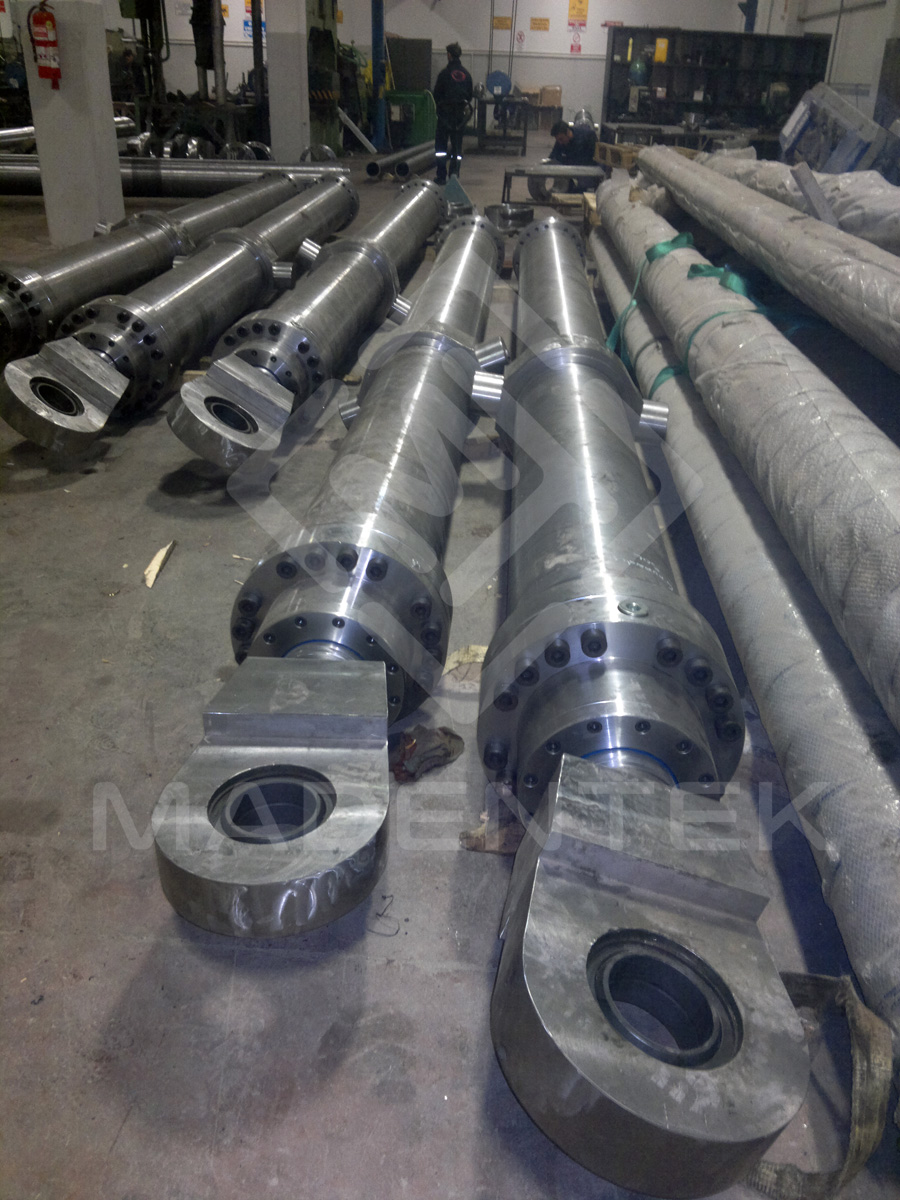

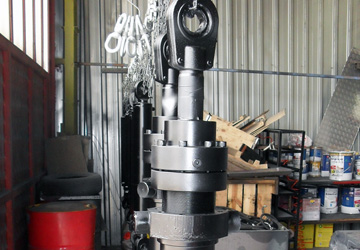

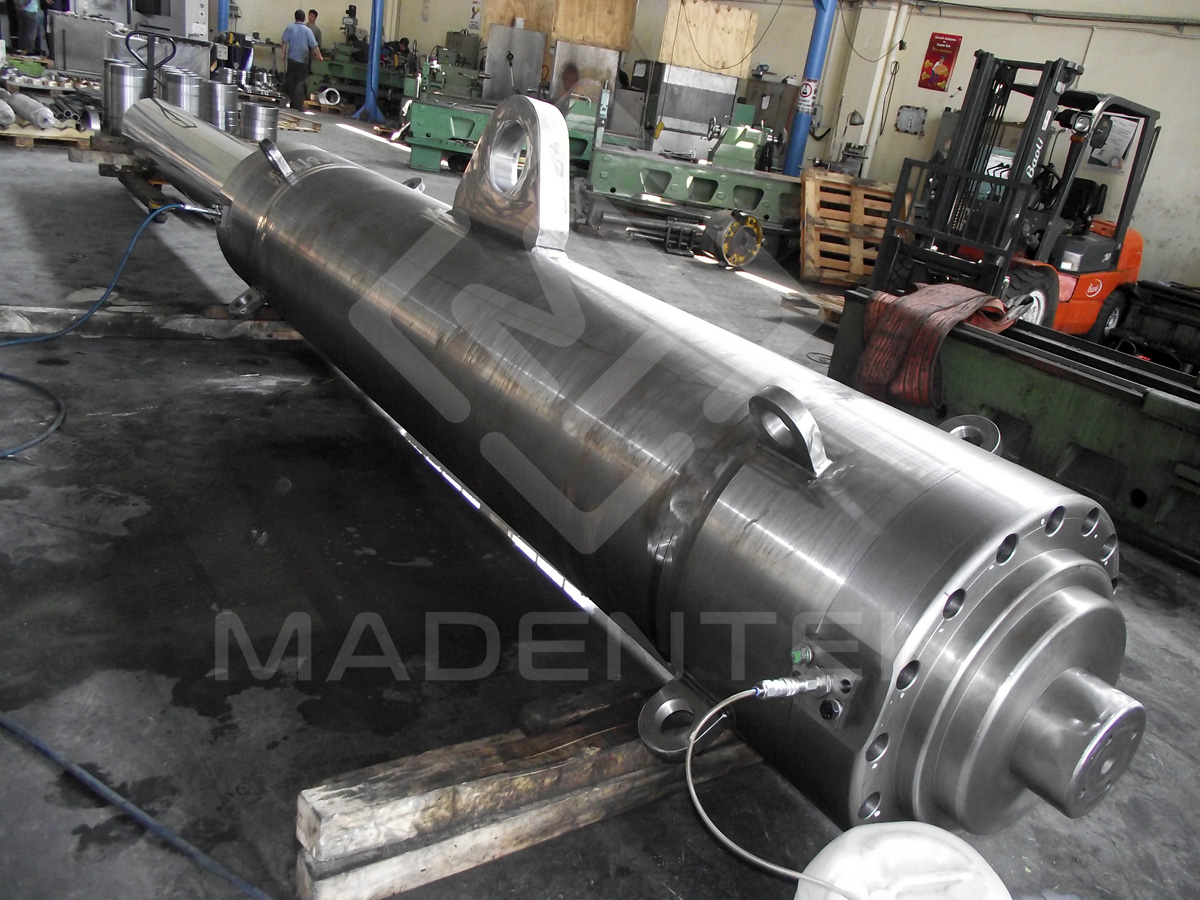

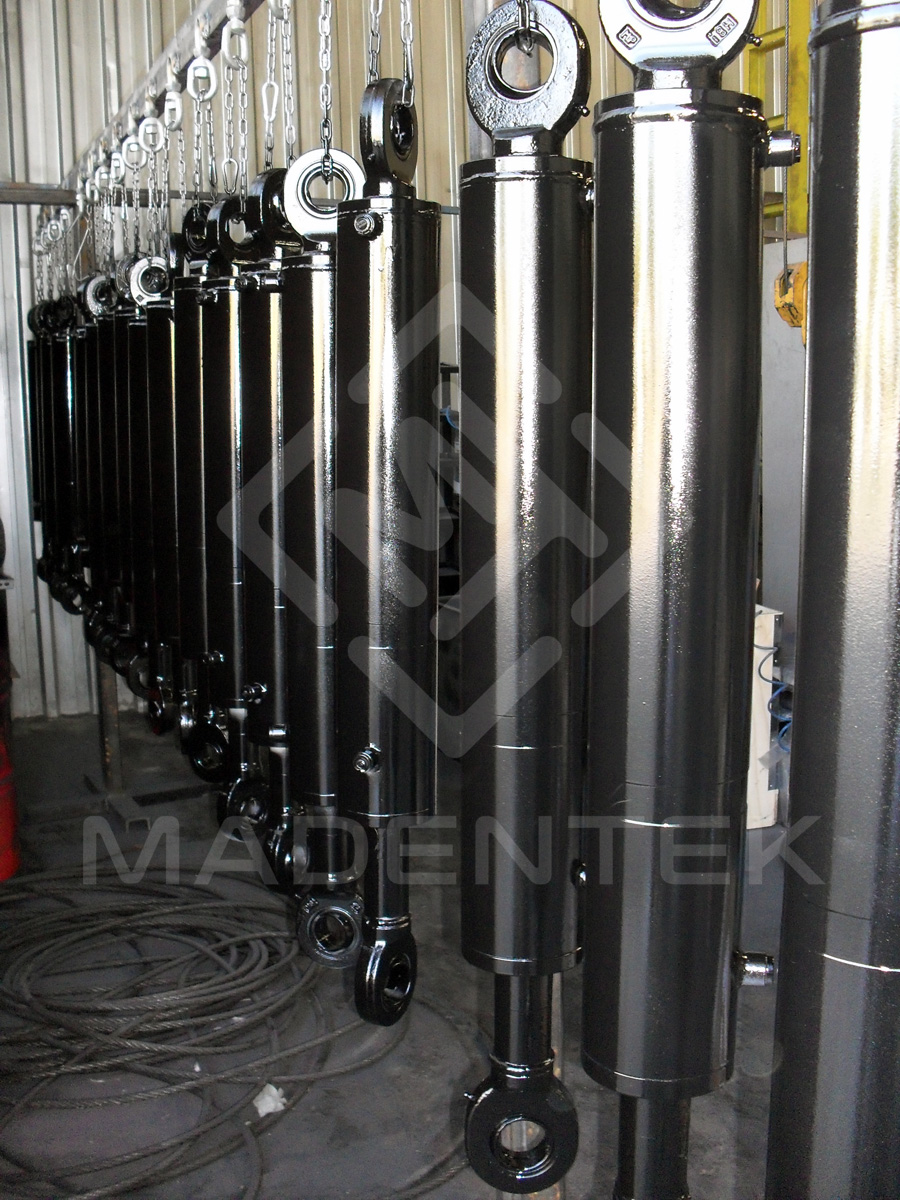

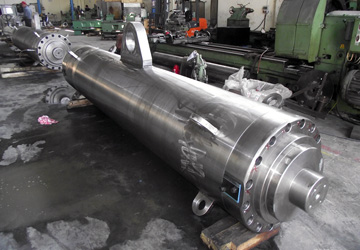

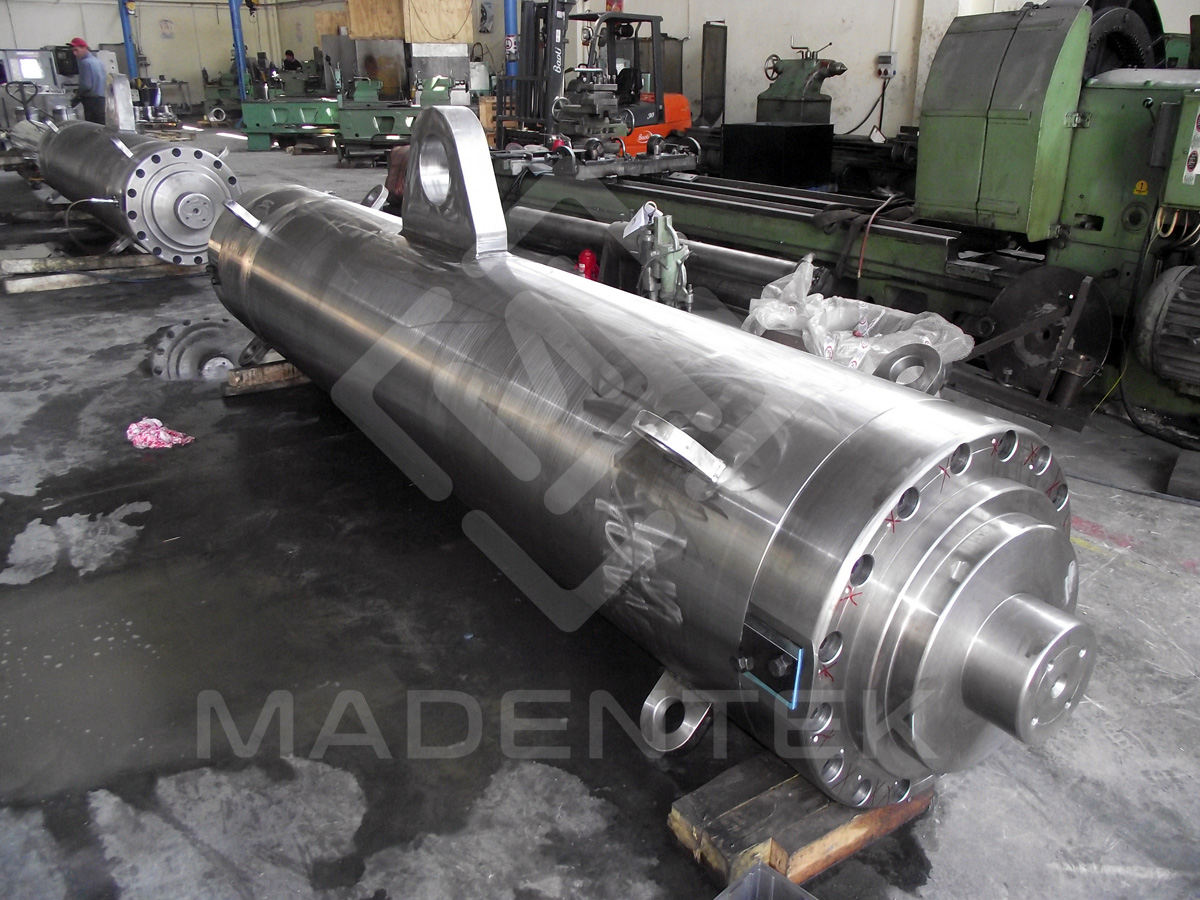

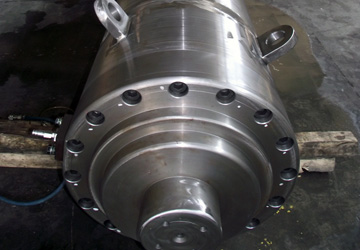

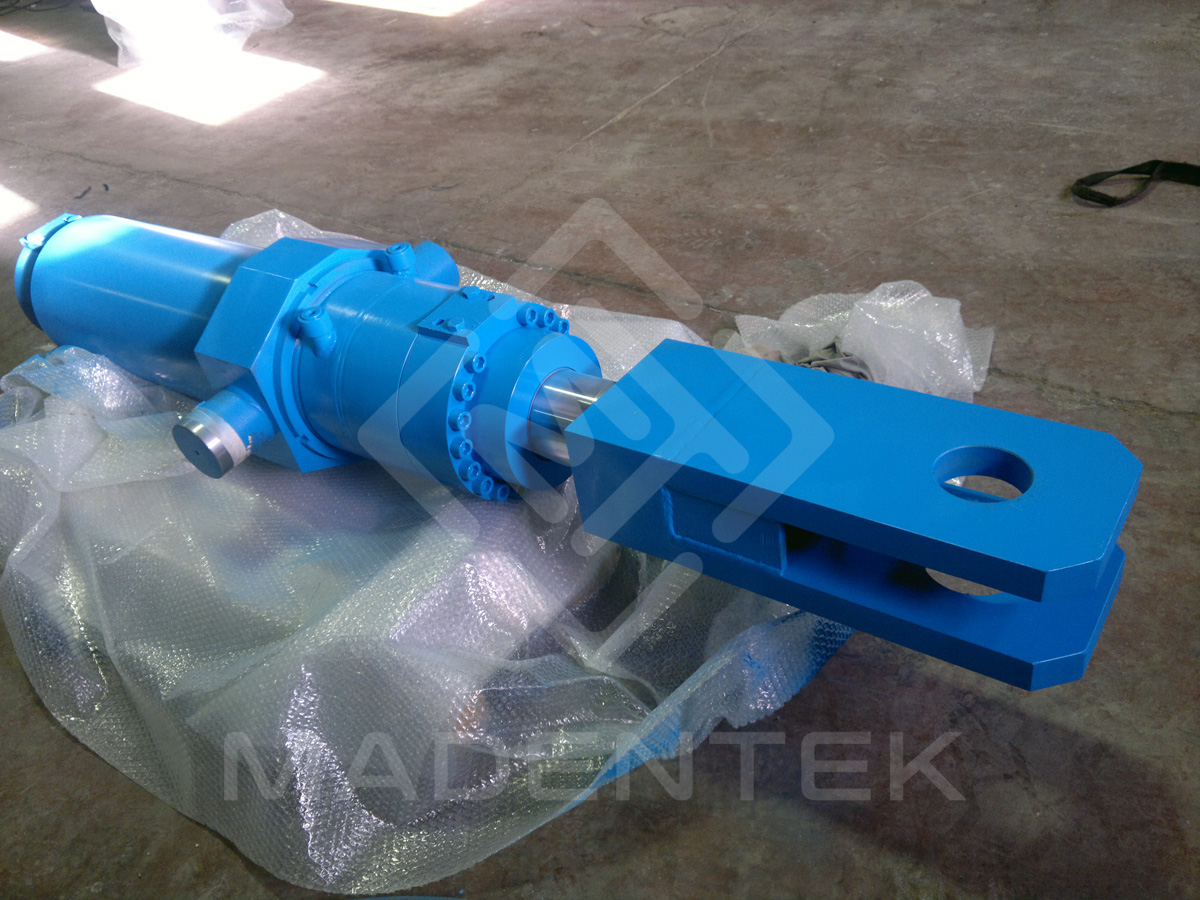

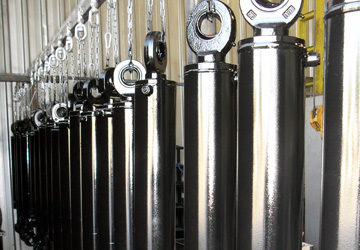

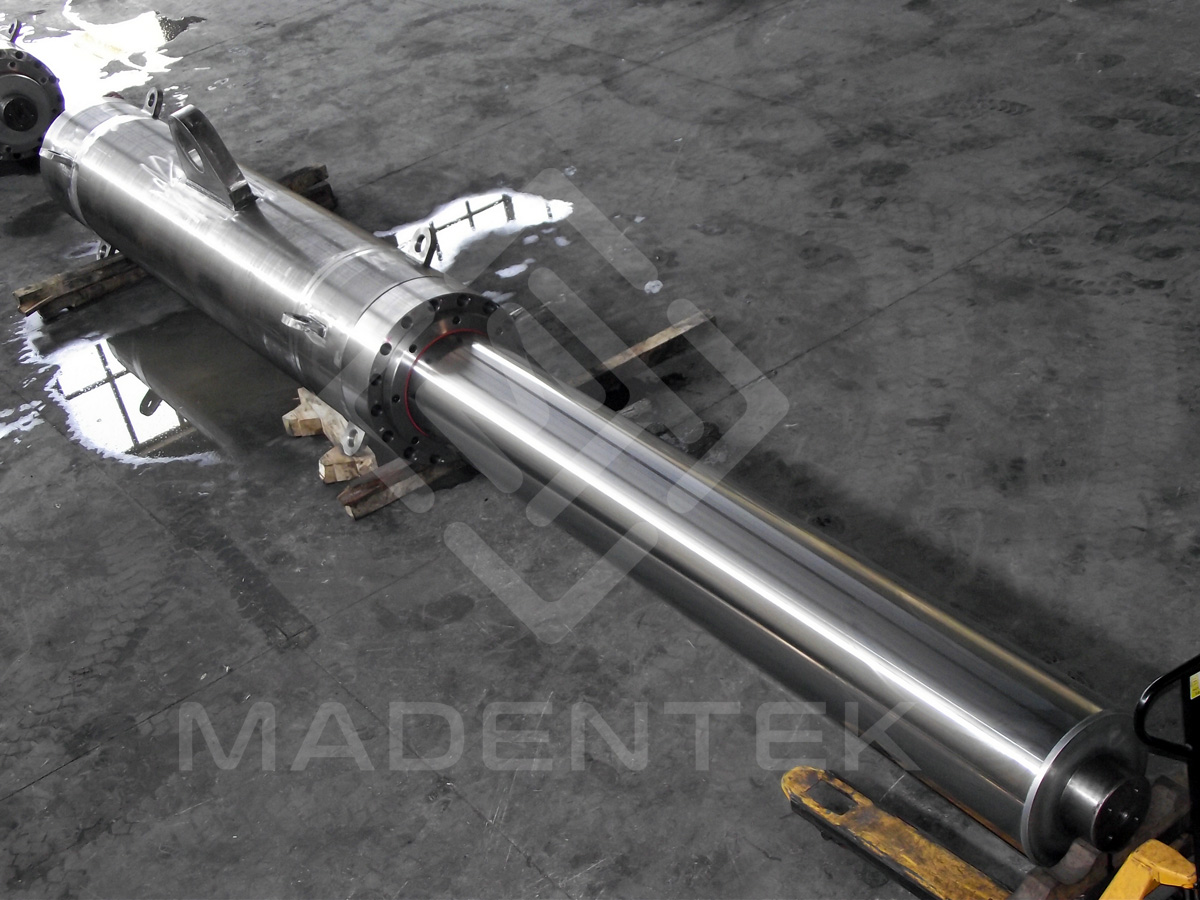

Some examples of our custom design hydraulic cylinders

Whether you need a simple cylinder assembly or a very complicated system, our flexible hydraulic cylinder product development capabilities provide you with innovation and quality assurance from start to finish. We work with global component manufacturers to develop purpose-built hydraulic cylinders that keep machines working for years to come. As you can see in the following pictures, MADENTEK is able to design and manufacture all sizes and all kinds of hydraulic cylinder for your needs.
